10-0199-2-00 ASI JD MacDonald Turbo-Slim Hand Dryer White

10-0199-2-00

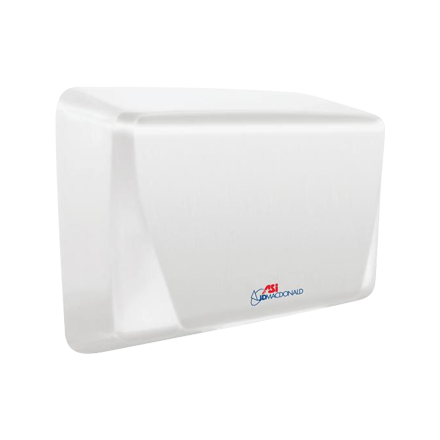

TURBO-SLIM™ High-speed Hand Dryer – White (10-0199-2-00)


Only 102 mm deep, this high-speed dryer can fit in most confined spaces. Quick drying with infrared sensor, auto-resetting thermostat and adjustable air speed and temperature. On/off heating options. Dryer automatically shuts off after time-out.

Finish Options: White
  • White
  • Satin Stainless Steel
  • Matte Black

BIM Objects

CAD File

Specification Sheet

Product Specifications


  • Quick drying – approx. 15 seconds
  • Operates automatically using infrared sensor
  • Auto-resetting thermostat
  • Owner-adjustable air speed and air temperature
  • On/off heating options
  • Dryer automatically shuts off after time-out when user removes hands from sensor zone
  • Weight: 3.8kg (Shipping 4.2kg)

Green Spec listed

  • Electrical Supply: AC, 220–240V 50/60Hz, 1000 Watt, 3-4A
  • Motor: 500 Watt, Brush Type, Dual Ball Bearings
  • RPM: 22,000 – 29,000 (adjustable)
  • Element: 275-500 Watt (adjustable)
  • Air Speed: 199 – 296 km/hr (adjustable)
  • Protection Category: IP24

Min: 60.5 dB-A @ 2M
Max: 67.2 dB-A @ 2M

270 x 216 x 102 mm
